    0.45W 2V mini transparent epoxy solar panel For solar street light energy systems ZW-9339

    Ask Lasest Price
    Brand Name : ZHIWANG
    Model Number : ZW-9339
    Certification : IS09001/14001/CE/TUV/UL,CE, EMC
    Price : Negotiable
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram payments for offline orders.
    Supply Ability : 300sets/day
    Delivery Time : 5-8 WORKING DAYS
    • Product Details
    • Company Profile

    0.45W 2V mini transparent epoxy solar panel For solar street light energy systems ZW-9339



    ZW-9339 poly crystalline silicon solar panel 2V 0.45W Residential Solar Power Panel for solar street light energy systems


    Model:ZW-9339 solar panel photovoltaic
    Brand:Zhiwang
    Size:93x39x2.5mm
    Material:Poly or Mono crystalline Silicon, Epoxy adhesive, PCB
    Battery:4
    Peak power:0.45W
    Max voltage:2V
    Max current:225mA
    Open voltage:2.2V
    Short current:228mA
    Weight:7.7G
    Raw Material:

    Poly-crystalline Silicon

    Epoxy Adhesive

    Printed Circuit Board (PCB)

    ProductCertification: CE EMC ROHS
    Color:Customize
    Warranty PeriodReplacement for manufacturing defects within 5 years
    Optimized cell efficiency:17%-19%
    Operating temperature:-40°C to +85°C
    NOCT48°C+/-2°C
    Guaranteed15 year:90% of its nominal power rating
    Power Output25 year:80% of its nominal power rating
    Warranty PeriodReplacement for manufacturing defects within 5 years
    CertificatesCE, RoHS, FCC, TUV
    CellsMono or Poly-crystalline Silicon Photo-voltaic cell
    Current temperature coefficient%/K0.06+/-0.01
    Voltage temperature coefficientmV/K-(78+/-10)
    Power temperature coefficient%/K-(0.5+/-0.05)

    The high efficiency solar PV module adopts the worlds highest efficiency cell with efficiency up to 23%, and efficiency of the module is 25-30% higher than the traditional ones, this cell’s positive pole and the negative pole are on the same side, the cell’s front side can absorb maximum sunlight, so that it can get the maximum power.


    Features

    1. High cell efficiency with quality silicon materials for long term output stability;

    2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures;

    3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance;

    4. Both Poly-crystalline and Mono-crystalline;

    5. Excellent performance in harsh weather;

    6. Outstanding electrical performance under high temperature and low irradiance;

    7. It's widely used for decorative lamps, electric toys, electronics, gifts and other industries;

    8. The size and shape can be customized;

    9. Our products are widely used in solar lighting, lamps, household electricity, traffic, communication, meteorological, building and photo-voltaic power plants and other fields.

    10. Quality solar cells with high solar energy conversion up to 19.5%.

    11. Mono-crystalline or poly-crystalline silicon solar cells are for options.

    12. Transparent low-iron tempered glass and anodized aluminum frame to ensure modules working in extreme outdoor environment.

    13. Lifespan up to 25 years.

    14. Rigorous quality control meeting the highest international standards;

    15. ISO9001: 2008(Quality Management System)certified factories manufacturing world-class products;

    16. Products meet international standards and through professional testing and certification authority (SGS, UL, CE, TUV).

    17. Resin/Epoxy PCB solar panel,effectively increase waterproof,dust proof,wear resistance,elastic,heat resistance.

    18. ETFE and PET PCB surface available for solar panel photo-voltaic.

    19. Super light to carry easy anytime, anywhere.

    20. High efficiency poly crystalline cells in solar panel photo voltaic.


    TEMPERATURE RATINGS

    * NOCT(Nominal Operating Cell Temperature) 45°C (±2°C)

    * Temperature Coeffi_x001d_cient of PMAX - 0.44%/°C

    * Temperature Coefficient of VOC - 0.33%/°C

    * Temperature Coefficient of ISC 0.046%/°C

    * Quality solar cells with high solar energy conversion up to 19.5%.

    * Mono-crystalline or poly-crystalline silicon solar cells are for options.


    Quality Assurance Testing

    Thermal cycling test

    Thermal shock test

    Thermal/Freezing and high humidity cycling test

    Electrical isolation test


    Module characteristic:

    1. High conversion rate and efficient output Poly crystalline Silicon.

    2. Mini Solar Panels with excellent weak light effect to charge solar kits system.

    3. High quality and high transmittance of toughened glass special for mini solar panels.

    4. The unique process makes the components look strong and anti-snow, and easy to install.

    5. Special techniques to avoid Mini Solar Panels the freezing and deformation of water in the frame Suitable for all kinds of small power appliances, emergency lights, advertising lights, traffic lights, household lights, electric fans, such as solar water pumps, solar street lamps, small solar systems.

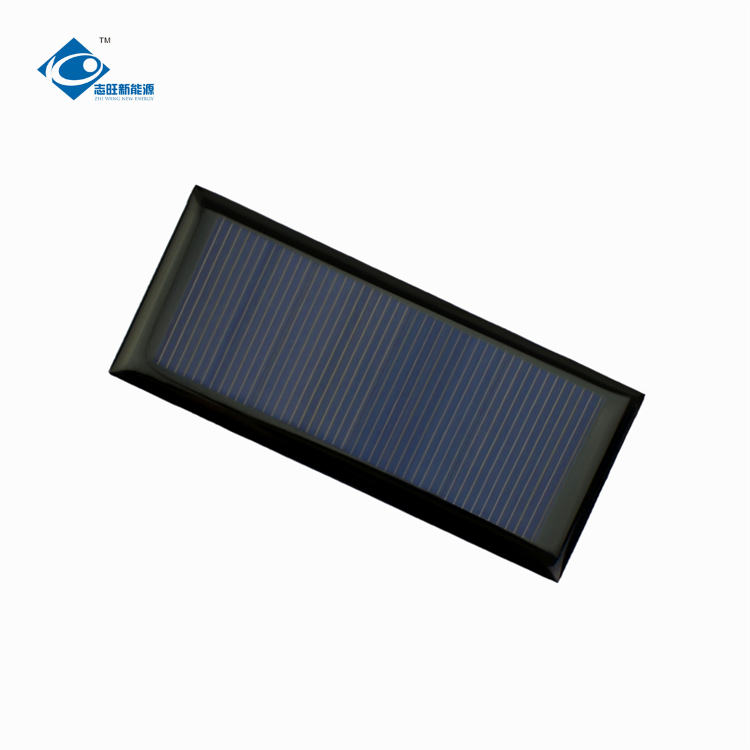

    ZW-9339 1.jpg

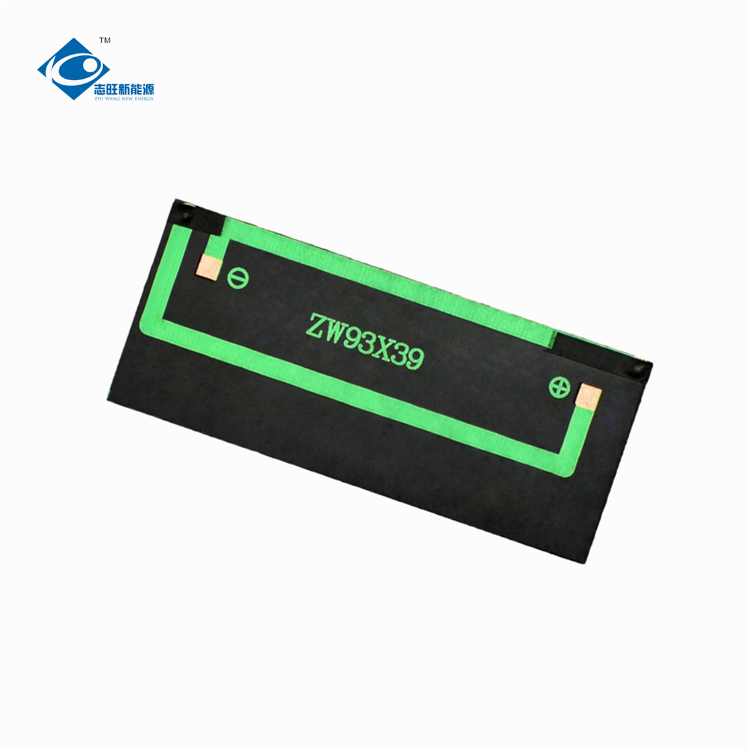

    ZW-9339 1_1.jpg

    ZW-9339 2.jpg





    0.45W 2V mini transparent epoxy solar panel For solar street light energy systems ZW-9339
