Zhiwang New Energy has Yuyao Zhiwang New Energy and Xuzhou Zhiwang New Energy, which can provide different solar panel products according to customer needs. For example, epoxy resin solar panels, PET
7 Years
| Ask Lasest Price | |
| Brand Name : | ZHIWANG |
| Model Number : | ZW-5W-12V |
| Certification : | CE EMC ROHS |
| Price : | USD $5.5 |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 300SETS ONE DAY |
| Delivery Time : | 5 DAYS |

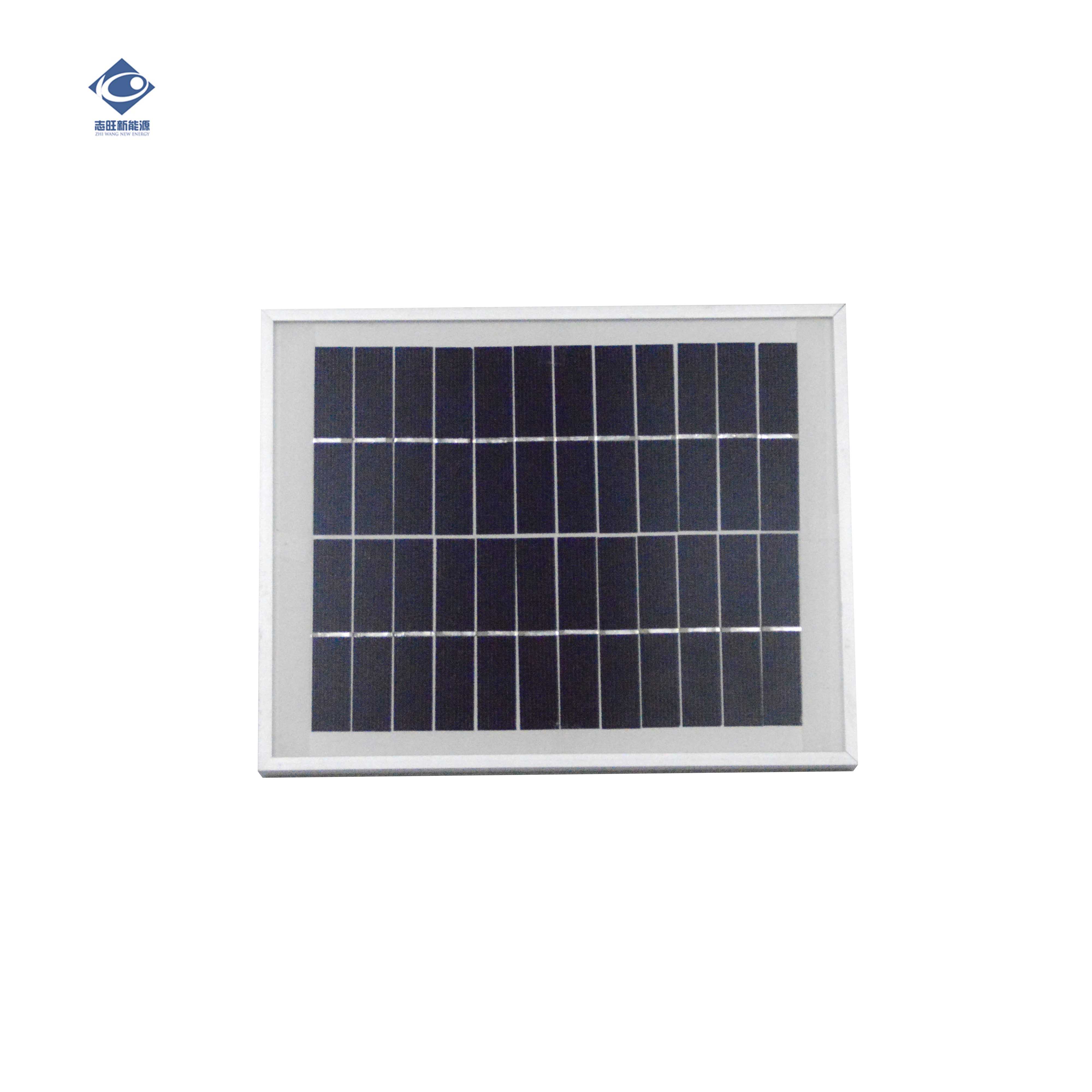

ZW-5W-12V Portable Solar Generator Power Charger 5W 12V Glass Poly Cristalline Solar Panel
| Model: | ZW-5W-12V | |
| Brand: | Zhiwang | |
| Size: | 240x190x17mm | |
| Material: | Poly crystalline silicon plastic (aluminum) border color material can be customized. | |
| Battery: | 24 | |
| Peak power: | 5W | |
| Cell size: | 18*78mm | |
| Max voltage: | 12V | |
| Max current: | 0.5A | |
| Open voltage: | 13.2V | |
| Short current: | 0.6A | |
| Weight: | 0.5KG | |
| Keyword: | Solar Photo-voltaic Panel | |
| Raw Material: | Glass and Plastic Frame Sandblast Aluminum Poly-crystalline Silicon Epoxy Adhesive Printed Circuit Board (PCB) | |
| Product | Certification: CE EMC ROHS | |
| Front Glass: | High Transparency Tempered Glass, 3.2mm | |
| Color: | Customize | |
| Keyword: | Glass Laminated Solar Panel | |
| Front Glass: | 3.2mm, High Transmission, Low iron, tempered Glass | |
| Color: | Customize | |
| Raw Material: | Glass and Plastic Frame Poly-crystalline or Mono-crystalline Silicon EVA-------excellent anti-aging EVA TPT-------TPT hot seal made of flame resistance | |
| Operating Temperature(°C) | -40°C ~ + 85°C | |
| Maximum System Voltage | 20V(UL)/30V(IEC) DC | |
| Maximum Rated Current Series | 3A | |
| Temperature Coefficients of Pmax | -0.435% | |
| Temperature Coefficients of Voc | -0.35% | |
| Temperature Coefficients of Isc | 0.043% | |
| Nominal Operating Cell Temperature (NOCT) | 47+/-2°C | |
| Current temperature coefficient | %/K | 0.06+/-0.01 |
| Voltage temperature coefficient | mV/K | -(78+/-10) |
| Power temperature coefficient | %/K | -(0.5+/-0.05) |
The high efficiency 12V 5W Residential Solar Power Panel ZW-5W-12V adopts the world’s highest efficiency cell with efficiency up to 23%, and efficiency of the module is 25-30% higher than the traditional ones, this cell’s positive pole and the negative pole are on the same side, the cell’s front side can absorb maximum sunlight, so that it can get the maximum power.
Features
1. High cell efficiency with quality silicon materials for long
term output stability;
2. Strictly quality control ensure the stability and reliability,
totally 23 QC procedures;
3. High transmittance low iron tempered glass with enhanced
stiffness and impact resistance;
4. Both Poly-crystalline and Mono-crystalline;
5. Excellent performance in harsh weather;
6. Outstanding electrical performance under high temperature and
low irradiance;
7. It's widely used for decorative lamps, electric toys,
electronics, gifts and other industries;
8. The size and shape can be customized;
9. Our products are widely used in solar lighting, lamps, household
electricity, traffic, communication, meteorological, building and
photo-voltaic power plants and other fields.
10. Quality solar cells with high solar energy conversion up to
19.5%.
11. Mono-crystalline or poly-crystalline silicon solar cells are
for options.
12. Transparent low-iron tempered glass and anodized aluminum frame
to ensure modules working in extreme outdoor environment.
13. Lifespan up to 25 years.
14. Rigorous quality control meeting the highest international
standards;
15. ISO9001: 2008(Quality Management System)certified factories
manufacturing world-class products;
16. Products meet international standards and through professional
testing and certification authority (SGS, UL, CE, TUV).
17. Resin/Epoxy PCB solar panel,effectively increase
waterproof,dust proof,wear resistance,elastic,heat resistance.
18. ETFE and PET PCB surface available for solar panel
photo-voltaic.
19. Super light to carry easy anytime, anywhere.
20. High efficiency poly crystalline cells in solar panel
photo-voltaic.
Quality Assurance Testing
Thermal cycling test
Thermal shock test
Thermal/Freezing and high humidity cycling test
Electrical isolation test
Hail impact test
Q. Are you a manufacturer or a trading company?
A. We are a factory in Yuyao, with OEM&ODM&Customization
available.
Q. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our Zhiwang 12V 5W aluminum Glass
Laminated Solar Panel ZW-5W-12V transparent solar panel sample.
Q. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown
cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your
authorization letters.
Q. What is your terms of delivery?
A: EXW, FOB, CIF.
Q. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your
advance payment. The specific delivery time depends on the items and the quantity of your Zhiwang 12V 5W aluminum Glass
Laminated Solar Panel ZW-5W-12V transparent solar panel order.
Q. Can you produce according to the samples?
A: Yes, we can produce by your Zhiwang 12V 5W aluminum Glass
Laminated Solar Panel ZW-5W-12V transparent solar panel samples or
technical drawings. We can build the molds and fixtures.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery Zhiwang 12V 5W aluminum
Glass Laminated Solar Panel ZW-5W-12V transparent solar panel.
Q.How many years for warranty?
A.Our warranty is 10 -15 years for our Zhiwang 12V 5W aluminum Glass Laminated Solar Panel ZW-5W-12V transparent solar panel.
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our
customers benefit ;
2. We respect every customer as our friend and we sincerely do
business and make friends with them, no matter where they come
from.
