Zhiwang New Energy has Yuyao Zhiwang New Energy and Xuzhou Zhiwang New Energy, which can provide different solar panel products according to customer needs. For example, epoxy resin solar panels, PET
7 Years
| Ask Lasest Price | |
| Brand Name : | ZHIWANG |
| Model Number : | ZW-4W-9V |
| Certification : | CE EMC ROHS |
| Price : | USD $5.80 |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 300SETS ONE DAY |
| Delivery Time : | 5 DAYS |

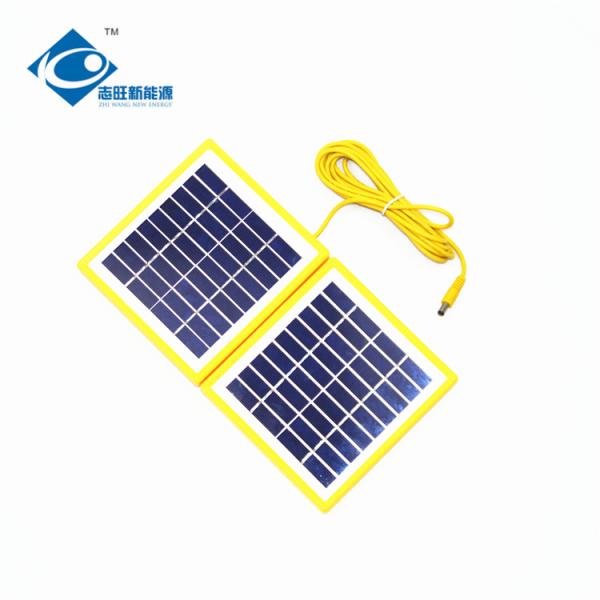

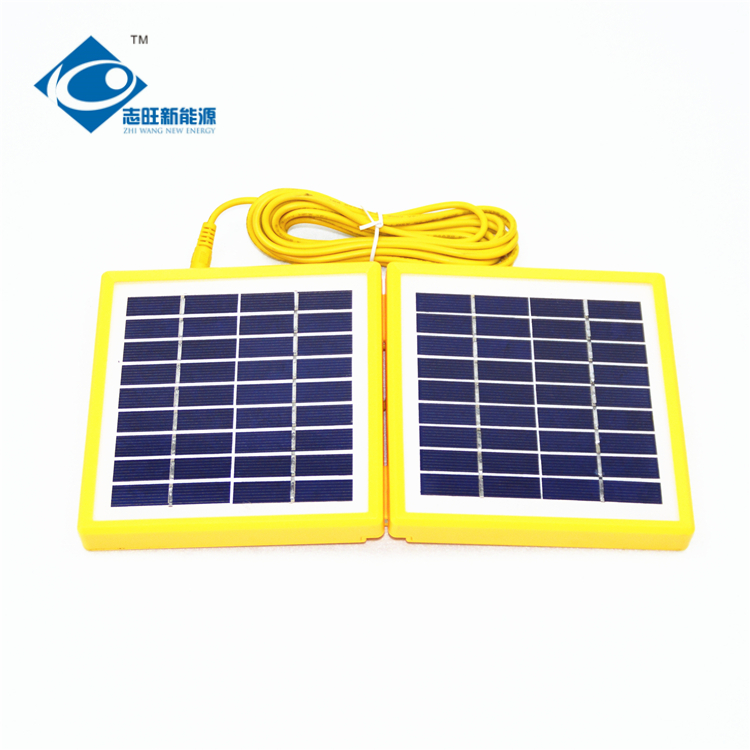

4W 9V Poly Glass Laminated Solar Panel for emergency power supply ZW-4W-9V portable Solar Photovoltaic Panels for DIY
| Model: | ZW-4W-9V | |
| Brand: | Zhiwang | |
| Size: | 280X180X18mm | |
| Material: | Polycrystalline silicon plastic (aluminum) border color material can be customized. | |
| Battery: | 18 | |
| Peak power: | 4W | |
| Max voltage: | 9V | |
| Max current: | 0.87A | |
| Open voltage: | 9.5V | |
| Short current: | 0.98A | |
| Weight: | 0.4KG | |
| Product Certification: | CCC CE ROHS | |
| Keyword: | Glass Laminated Solar Panel | |
| Front Glass: | 3.2mm, High Transmission, Low iron, tempered Glass | |
| Color: | Customize | |
| Raw Material: | Glass and Plastic Frame Poly-crystalline or Mono-crystalline Silicon EVA-------excellent anti-aging EVA TPT-------TPT hot seal made of flame resistance | |
| Operating Temperature(°C) | -40°C ~ + 85°C | |
| Maximum System Voltage | 600V(UL)/1000V(IEC) DC | |
| Maximum Rated Current Series | 10A | |
| Temperature Coefficients of Pmax | -0.435% | |
| Temperature Coefficients of Voc | -0.35% | |
| Temperature Coefficients of Isc | 0.043% | |
| Nominal Operating Cell Temperature (NOCT) | 47+/-2°C | |
| Current temperature coefficient | %/K | 0.06+/-0.01 |
| Voltage temperature coefficient | mV/K | -(78+/-10) |
| Power temperature coefficient | %/K | -(0.5+/-0.05) |
These are durable, high-efficiency, small 4W 9V Glass Laminated Solar Panel for mini solar generator ZW-4W-9V for sale that customers often use for remote transmitters, battery charging, electric gate openers, RVs, boats, etc.
The high efficiency solar PV module adopts the world’s highest efficiency cell with efficiency up to 23%, and efficiency of the module is 25-30% higher than the traditional ones, this cell’s positive pole and the negative pole are on the same side, the cell’s front side can absorb maximum sunlight, so that it can get the maximum power.
Module characteristic:
High conversion rate and efficient output Poly crystalline Silicon
4W 9V Glass Laminated Solar Panel for mini solar generator ZW-4W-9V with excellent weak light effect to charge solar kits system.
High quality and high transmittance of toughened glass special for mini solar panels
The unique process makes the components look strong and anti-snow, and easy to install
Special techniques to avoid ZW-4W-9V Solar Photovoltaic Panel for commercial solar panel charger the freezing and deformation of water in the frame Suitable for all kinds of small power appliances, emergency lights, advertising lights, traffic lights, household lights, electric fans, such as solar water pumps, solar street lamps, small solar systems
ZW-4W-9V Solar Photovoltaic Panel for commercial solar panel charger suitable for all kinds of small power appliances, emergency lights, advertising lights, traffic lights, household lights, electric fans, such as solar water pumps, solar street lamps, small solar systems
Quality solar cells with high solar energy conversion up to 19.5%.
Mono-crystalline or poly-crystalline silicon solar cells are for options.
Transparent low-iron tempered glass and anodized aluminum frame to ensure modules working in extreme outdoor environment.
Lifespan up to 25 years.
TEMPERATURE RATINGS
* NOCT(Nominal Operating Cell Temperature) 45°C (±2°C)
* Temperature Coeffi_x001d_cient of PMAX - 0.44%/°C
* Temperature Coefficient of VOC - 0.33%/°C
* Temperature Coefficient of ISC 0.046%/°C
Quality Assurance Testing
Thermal cycling test
Thermal shock test
Thermal/Freezing and high humidity cycling test
Electrical isolation test
Hail impact test
Mechanical, wind and twist loading test
Salt mist test
Light and water-exposure test
Moist carbon dioxide/sulphur dioxide
Features
1. High cell efficiency with quality silicon materials for long
term output stability;
2. Strictly quality control ensure the stability and reliability,
totally 23 QC procedures;
3. High transmittance low iron tempered glass with enhanced
stiffness and impact resistance;
4. Both Poly-crystalline and Mono-crystalline;
5. Excellent performance in harsh weather;
6. Outstanding electrical performance under high temperature and
low irradiance;
7. It's widely used for decorative lamps, electric toys,
electronics, gifts and other industries;
8. The size and shape can be customized;
9. Our products are widely used in solar lighting, lamps, household
electricity, traffic, communication, meteorological, building and
photo-voltaic power plants and other fields.
10. Quality solar cells with high solar energy conversion up to
19.5%.
11. Mono-crystalline or poly-crystalline silicon solar cells are
for options.
12. Transparent low-iron tempered glass and anodized aluminum frame
to ensure modules working in extreme outdoor environment.
13. Lifespan up to 25 years.
14. Rigorous quality control meeting the highest international
standards;
15. ISO9001: 2008(Quality Management System)certified factories
manufacturing world-class products;
16. Products meet international standards and through professional
testing and certification authority (SGS, UL, CE, TUV).
17. Resin/Epoxy PCB solar panel,effectively increase
waterproof,dust-proof,wear resistance,elastic,heat resistance.
18. ETFE and PET PCB surface available for solar panel
photo-voltaic.
19. Super light to carry easy anytime, anywhere.
20. High efficiency poly crystalline cells in solar panel
photo-voltaic.
21. Environmental friendly AB glue used in solar panel
photo-voltaic.
22. High quality epoxy resin.
23. Smooth surface and amazing appearance
24. Widely used for educational kits,experiment kits,science
kits,toys kits,small power supply etc.
25. OEM/ODM/Custom service any size,voltage and color.
Q. Are you a manufacturer or a trading company?
A. We are a factory in Yuyao, with OEM&ODM&Customization available.
Q. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our 4W 9V Glass Laminated Solar Panel
for mini solar generator ZW-4W-9V Solar Photovoltaic Panel for
commercial solar panel charger sample.
Q. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown
cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your
authorization letters.
Q. What is your terms of delivery?
A: EXW, FOB, CIF.
Q. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your
advance payment. The specific delivery time depends on the items and the quantity of your 4W 9V Glass Laminated Solar
Panel for mini solar generator ZW-4W-9V Solar Photovoltaic Panel
for commercial solar panel charger order.
Q. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We
can build the molds and fixtures.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery 4W 9V Glass Laminated
Solar Panel for mini solar generator ZW-4W-9V Solar Photovoltaic
Panel for commercial solar panel charger.
Q.How many years for warranty?
A.Our warranty is 20 -25 years.
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our
customers benefit ;
2. We respect every customer as our friend and we sincerely do
business and make friends with them, no matter where they come
from.
Zhiwang attaches great importance to the development of new products.
In the past 10 years, the company has been developing itself.
We sincerely welcome new and old customers at home and abroad to visit!
|
