Zhiwang New Energy has Yuyao Zhiwang New Energy and Xuzhou Zhiwang New Energy, which can provide different solar panel products according to customer needs. For example, epoxy resin solar panels, PET
7 Years
| Ask Lasest Price | |
| Brand Name : | ZHIWANG |
| Model Number : | ZW-1.5W-9V |
| Certification : | CE EMC ROHS |
| Price : | USD $3/PCS |
| Payment Terms : | L/C, D/A, T/T, D/P, D/A, Western Union, MoneyGram |
| Supply Ability : | 500 Set/Sets per Week |
| Delivery Time : | 5-8 work days |

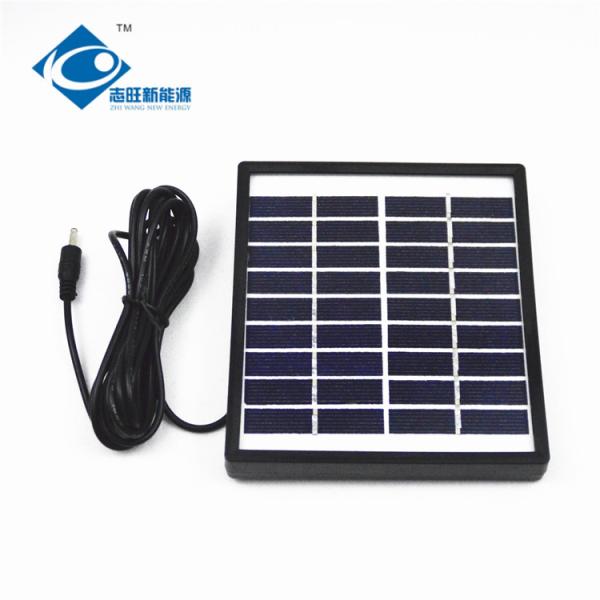

Zhiwang 9V Mini Poly Photovoltaic Solar Panel 1.5W Glass Laminated Solar Panel Charger ZW-1.5W-9V
| Model: | ZW-1.5W-9V | |
| Brand: | Zhiwang | |
| Size: | 118x134x17mm | |
| Material: | Glass and Plastic Frame | |
| Battery: | 18 | |
| Peak power: | 1.5W | |
| Max voltage: | 9V | |
| Max current: | 0.17A | |
| Open voltage: | 10.5V | |
| Short current: | 0.25A | |
| Weight: | 0.21KG | |
| Keyword: | Glass Laminated Solar Panel | |
| Front Glass: | 3.2mm, High Transmission, Low iron, tempered Glass | |
| Color: | Customize | |
| Raw Material: | Glass and Plastic Frame Poly-crystalline or Mono-crystalline Silicon EVA-------excellent anti-aging EVA TPT-------TPT hot seal made of flame resistance | |
| Operating Temperature(°C) | -40°C ~ + 85°C | |
| Maximum System Voltage | 10V(UL)/15V(IEC) DC | |
| Maximum Rated Current Series | 2A | |
| Temperature Coefficients of Pmax | -0.435% | |
| Temperature Coefficients of Voc | -0.35% | |
| Temperature Coefficients of Isc | 0.043% | |
| Nominal Operating Cell Temperature | 47+/-2°C | |
| Current temperature coefficient | %/K | 0.06+/-0.01 |
| Voltage temperature coefficient | mV/K | -(78+/-10) |
| Power temperature coefficient | %/K | -(0.5+/-0.05) |
| Warranty Period | Replacement for manufacturing defects within 10 years | |
| Certificates | CE, RoHS, EMC | |
* Quality solar cells with high solar energy conversion up to 19.5%.
* Mono-crystalline or poly-crystalline silicon solar cells are for options.
* Transparent low-iron tempered glass and anodized aluminum frame to ensure modules working in extreme outdoor environment.
* Lifespan up to 15 years for our 9V 1.5W solar panel photovoltaic for Home Solar Power System.
TEMPERATURE RATINGS
* NOCT(Nominal Operating Cell Temperature) 45°C (±2°C)
* Temperature Coeffi_x001d_cient of PMAX - 0.44%/°C
* Temperature Coefficient of VOC - 0.33%/°C
* Temperature Coefficient of ISC 0.046%/°C
WARRANTY
* 10 year Product Workmanship Warranty
* 15 year Linear Power Warranty
Features
1. High cell efficiency with quality silicon materials for long
term output stability;
2. Strictly quality control ensure the stability and reliability,
totally 23 QC procedures;
3. High transmittance low iron tempered glass with enhanced
stiffness and impact resistance;
4. Both Poly-crystalline and Mono-crystalline;
5. Excellent performance in harsh weather for our 9V 1.5W solar
panel photovoltaic for Home Solar Power System;
6. Outstanding electrical performance under high temperature and
low irradiance;
7. It's widely used for decorative lamps, electric toys,
electronics, gifts and other industries;
8. The size and shape can be customized;
9. Our products are widely used in solar lighting, lamps, household
electricity, traffic, communication, meteorological, building and
photo-voltaic power plants and other fields.
10. Quality solar cells with high solar energy conversion up to
19.5%.
11. Mono-crystalline or poly-crystalline silicon solar cells are
for options.
12. Transparent low-iron tempered glass and anodized aluminum frame
to ensure modules working in extreme outdoor environment.
13. Lifespan up to 25 years.
14. Rigorous quality control meeting the highest international
standards;
15. ISO9001: 2008(Quality Management System)certified factories
manufacturing world-class products;
16. Products meet international standards and through professional
testing and certification authority (SGS, UL, CE, TUV).
17. Resin/Epoxy PCB solar panel,effectively increase
waterproof,dust-proof,wear resistance,elastic,heat resistance.
18. ETFE and PET PCB surface available for solar panel
photo-voltaic.
19. Super light to carry easy anytime, anywhere used of 9V 1.5W
solar panel photovoltaic for Home Solar Power System.
20. High efficiency poly-crystalline cells in solar panel
photo-voltaic.
21. Environmental friendly AB glue used in solar panel
photo-voltaic.
22. High quality epoxy resin.
23. Smooth surface and amazing appearance
24. Widely used for educational kits,experiment kits,science
kits,toys kits,small power supply etc.
25. OEM/ODM/Custom service any size,voltage and color.
Q. Are you a manufacturer or a trading company?
A. We are a factory in Yuyao, with OEM&ODM&Customization
available.
Q. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our ZW-1.5W-9V mini poly photovoltaic
solar panel 9V 1.5W Glass Laminated Solar Panel for portable
camping solar charger sample.
Q. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown
cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your
authorization letters.
Q. What is your terms of delivery?
A: EXW, FOB, CIF.
Q. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your
advance payment. The specific delivery time depends on the items and the quantity of your ZW-1.5W-9V mini poly
photovoltaic solar panel 9V 1.5W Glass Laminated Solar Panel for
portable camping solar charger order.
Q. Can you produce according to the samples?
A: Yes, we can produce by your ZW-1.5W-9V mini poly photovoltaic
solar panel 9V 1.5W Glass Laminated Solar Panel for portable
camping solar charger samples or technical drawings. We can build
the molds and fixtures.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery ZW-1.5W-9V mini poly
photovoltaic solar panel 9V 1.5W Glass Laminated Solar Panel for
portable camping solar charger.
Q.How many years for warranty?
A.Our warranty is 10 -15 years for our ZW-1.5W-9V mini poly photovoltaic solar panel 9V 1.5W Glass Laminated Solar Panel for portable camping solar charger.
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our
customers benefit ;
2. We respect every customer as our friend and we sincerely do
business and make friends with them, no matter where they come
from.
Zhiwang New Energy attaches great importance to the development of new products.
In the past 15 years, the company has been developing itself.
We sincerely welcome new and old customers at home and abroad to visit!
|
