| Brand Name : | ZHIWANG |
| Model Number : | ZW-20W-18V |
| Certification : | IS09001/14001/CE/TUV/UL,CE, EMC |
| Price : | Negotiable |
| Payment Terms : | L/C,D/A,D/P,T/T,Western Union,MoneyGram payments for offline orders. |
| Supply Ability : | 300sets/day |
| Delivery Time : | 5-8 WORKING DAYS |

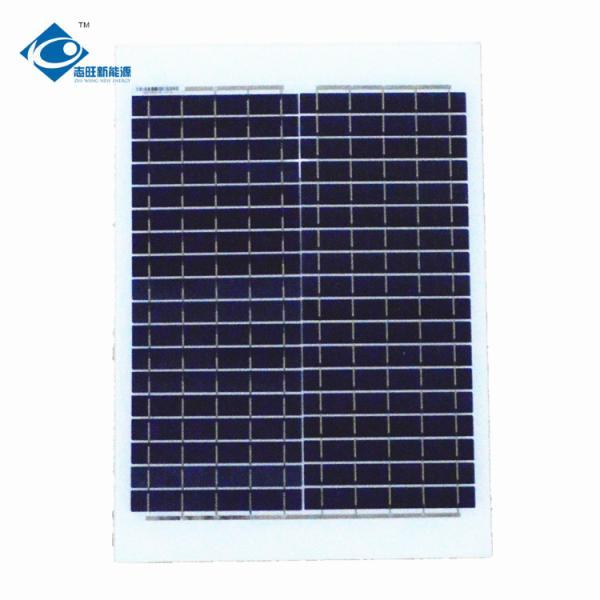

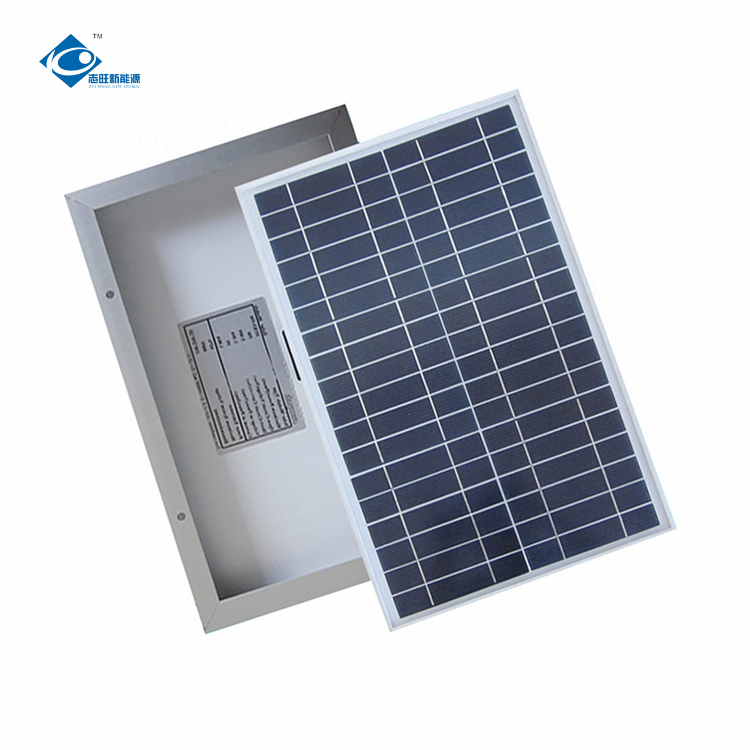

Mono Solar Panel Factory Outlet High Efficiency 18V 20W Intenergy 25 years warranty ZW-20W-18V-1
| Model: | ZW-20W-18V | |
| Brand: | Zhiwang | |
| Size: | 490*350*20mm | |
| Material: | Polycrystalline silicon plastic (aluminum) border color material can be customized. | |
| Battery: | 36 | |
| Peak power: | 20W | |
| Size of Cell | 22.3*156mm | |
| Max voltage: | 18V | |
| Max current: | 1.07A | |
| Open voltage: | 22.46V | |
| Short current: | 1.18A | |
| Weight: | 1.75KG | |
| Keyword: | Glass Laminated Solar Panel | |
| Front Glass: | 3.2mm, High Transmission, Low iron, tempered Glass | |
| Color: | Customize | |
| Raw Material: | Glass, Plastic Frame or Glass and aluminium sash Frame Poly-crystalline or Mono-crystalline Silicon EVA-------excellent anti-aging EVA TPT-------TPT hot seal made of flame resistance | |
| Operating Temperature(°C) | -40°C ~ + 85°C | |
| Maximum System Voltage | 20V(UL)/25V(IEC) DC | |
| Maximum Rated Current Series | 3A | |
| Temperature Coefficients of Pmax | -0.435% | |
| Temperature Coefficients of Voc | -0.35% | |
| Temperature Coefficients of Isc | 0.043% | |
| Nominal Operating Cell Temperature | 47+/-2°C | |
| Current temperature coefficient | %/K | 0.06+/-0.01 |
| Voltage temperature coefficient | mV/K | -(78+/-10) |
| Power temperature coefficient | %/K | -(0.5+/-0.05) |
WARRANTY
* 10 year Product Workmanship Warranty
* Quality solar cells with high solar energy conversion up to
19.5%.
* Mono-crystalline or poly-crystalline silicon solar cells are for
options.
* Transparent low-irom tempered glass and anodized aluminum frame
to ensure modules working in extreme outdoor environment.
* Rigorous quality control meeting the highest international
standards;
Features
1. High cell efficiency with quality silicon materials for long
term output stability;
2. Strictly quality control ensure the stability and reliability,
totally 23 QC procedures;
3. High transmittance low iron tempered glass with enhanced
stiffness and impact resistance;
4. Both Poly-crystalline and Mono-crystalline;
5. Excellent performance in harsh weather;
6. Outstanding electrical performance under high temperature and
low irradiance;
7. It's widely used for decorative lamps, electric toys,
electronics, gifts and other industries;
8. The size and shape can be customized;
9. Our products are widely used in solar lighting, lamps, household
electricity, traffic, communication, meteorological, building and
photovoltaic power plants and other fields.
10. Quality solar cells with high solar energy conversion up to
19.5%.
Module characteristic:
High conversion rate and efficient output Poly crystalline Silicon.
The unique process makes the components look strong and anti-snow, and easy to install.
Special techniques to avoid Mini Solar Panels 18V the freezing and deformation of water in the frame Suitable for all kinds of small power appliances, emergency lights, advertising lights, traffic lights, household lights, electric fans, such as solar water pumps, solar street lamps, small solar systems.
Q. Are you a manufacturer or a trading company?
A. We are two factories in Yuyao,Zhejiang and Xuzhou, Jiangsu, we can deal with OEM & ODM, customization available.
Q. Is it OK to print my logo on solar paenl product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Q. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown
cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your
authorization letters.
Q. What is your terms of delivery?
A: EXW, FOB, CIF. And other accepted payment method.
Q. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your
advance payment. The specific delivery time depends on the items and the quantity of your order.
Q. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We
can build the molds and fixtures.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q.How many years for warranty?
A: Our warranty is 5 -10 years.
