| Brand Name : | ZHIWANG |
| Model Number : | ZW-3535 |
| Certification : | IS09001/14001/CE/TUV/UL,CE, EMC |
| Price : | Negotiable |
| Payment Terms : | L/C,D/A,D/P,T/T,Western Union,MoneyGram payments for offline orders. |
| Supply Ability : | 300sets/day |
| Delivery Time : | 5-8 WORKING DAYS |

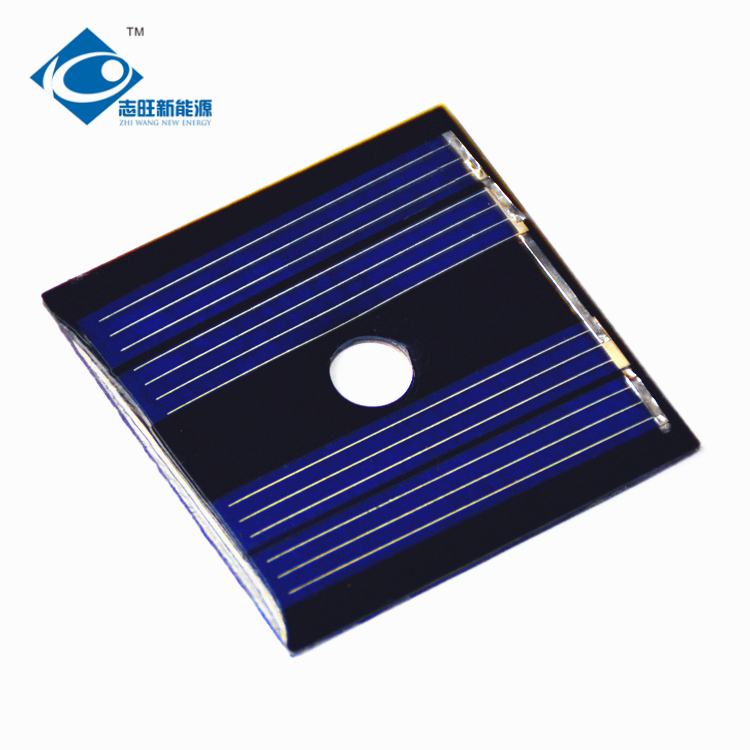

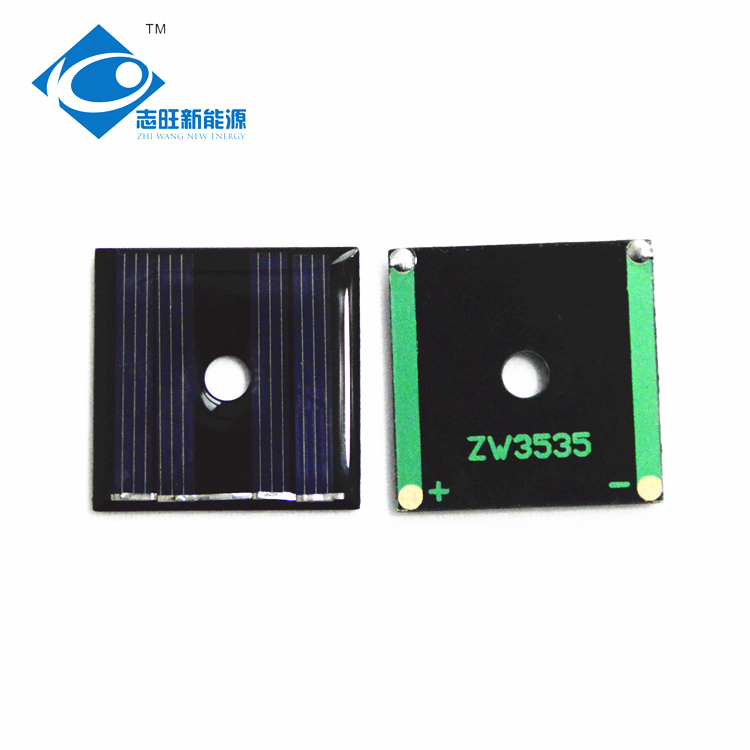

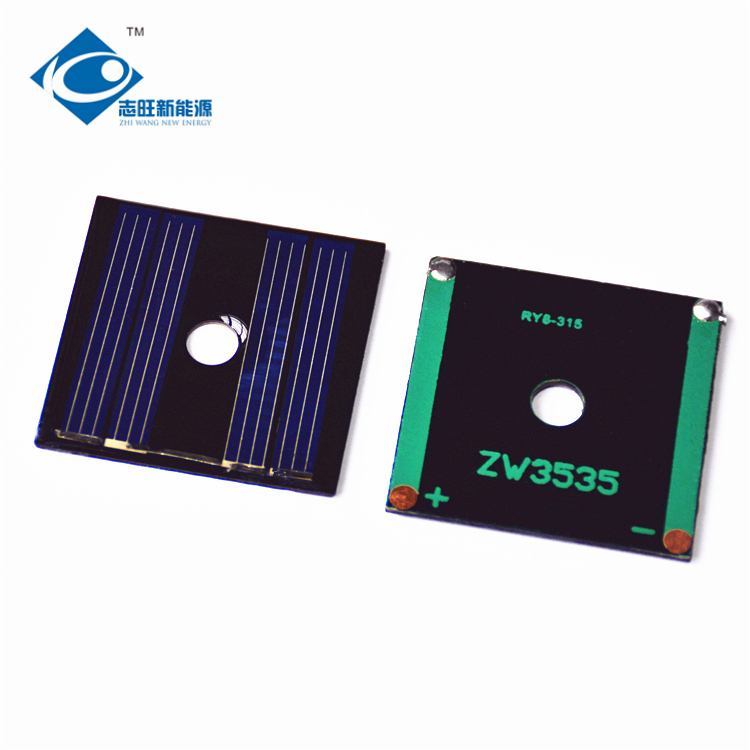

0.12W High-strength Epoxy Adhesive Solar Panel ZW-3535 Airport Bird Repellent Solar Panel Charger 2V
| Model: | ZW-3535 | |
| Brand: | Zhiwang | |
| Size: | 35x35x2.5mm | |
| Battery: | 2 | |
| Peak power: | 0.12W | |
| Max voltage: | 2V | |
| Max current: | 60mA | |
| Open voltage: | 2.2V | |
| Short current: | 85mA | |
| Weight: | 3G | |
| Raw Material: | Poly or Mono crystalline Silicon Epoxy Adhesive Printed Circuit Board (PCB) | |
| Operating Temperature(°C) | -40°C ~ + 85°C | |
| Maximum System Voltage | 6V(UL)/10V(IEC) DC | |
| Maximum Rated Current Series | 1A | |
| Temperature Coefficients of Pmax | -0.435% | |
| Temperature Coefficients of Voc | -0.35% | |
| Temperature Coefficients of Isc | 0.043% | |
| Nominal Operating Cell Temperature | 47+/-2°C | |
| Optimized cell efficiency: | 17%-19% | |
| Guaranteed | 3 year:90% of its nominal power rating | |
| Certificates | CE, RoHS, EMC | |
| Optimized cell efficiency: | 17%-19% | |
| Current temperature coefficient | %/K | 0.06+/-0.01 |
| Voltage temperature coefficient | mV/K | -(78+/-10) |
| Power temperature coefficient | %/K | -(0.5+/-0.05) |
Features
1. High cell efficiency with quality silicon materials for long term output stability;
2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures;
3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance;
4. Both Poly-crystalline and Mono-crystalline;
5. Excellent performance in harsh weather;
6. Outstanding electrical performance under high temperature and low irradiance;
7. It's widely used for decorative lamps, electric toys, electronics, gifts and other industries;
8. The size and shape can be customized;
9. Our products are widely used in solar lighting, lamps, household electricity, traffic, communication, meteorological, building and photo-voltaic power plants and other fields.
10. Quality solar cells with high solar energy conversion up to 19.5%.
11. Mono-crystalline or poly-crystalline silicon solar cells are for options.
12. Transparent low-iron tempered glass and anodized aluminum frame to ensure modules working in extreme outdoor environment.
13. Lifespan up to 25 years.?
14. Rigorous quality control meeting the highest international standards;
15. ISO9001: 2008(Quality Management System)certified factories manufacturing world-class products;
16. Products meet international standards and through professional testing and certification authority (SGS, UL, CE, TUV).
17. Resin/Epoxy PCB solar panel,effectively increase waterproof,dust proof,wear resistance,elastic,heat resistance.
18. ETFE and PET PCB surface available for solar panel photo-voltaic.
19. Super light to carry easy anytime, anywhere.
20. High efficiency poly crystalline cells in solar panel photo voltaic.
Module characteristic:
1. High conversion rate and efficient output Poly crystalline
Silicon.
2. Mini Solar Panels with excellent weak light effect to charge
solar kits system.
3. High quality and high transmittance of toughened glass special
for mini solar panels.
4. The unique process makes the components look strong and
anti-snow, and easy to install.
5. Special techniques to avoid Mini Solar Panels the freezing and
deformation of water in the frame Suitable for all kinds of small
power appliances, emergency lights, advertising lights, traffic
lights, household lights, electric fans, such as solar water pumps,
solar street lamps, small solar systems.
Q. Are you a manufacturer or a trading company?
A. We are two factories in Yuyao,Zhejiang and Xuzhou, Jiangsu, with OEM& ODM& Customization available.
Q. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our Zhiwang 2V 0.12W epoxy adhesive
solar panel For airport solar bird repellent ZW-3535 sample.
Q. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown
cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your
authorization letters.
Q. What is your terms of delivery?
A: EXW, FOB, CIF. And other accepted payment method.
Q. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your
advance payment. The specific delivery time depends on the items and the quantity of your Zhiwang 2V 0.12W epoxy
adhesive solar panel For airport solar bird repellent ZW-3535
order.
Q. Can you produce according to the samples?
A: Yes, we can produce by your Zhiwang 2V 0.12W epoxy adhesive
solar panel For airport solar bird repellent ZW-3535 samples or
technical drawings. We can build the molds and fixtures.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery Zhiwang 2V 0.12W epoxy
adhesive solar panel For airport solar bird repellent ZW-3535.
Q.How many years for warranty?
A: Our warranty is 3 -5 years for our Zhiwang 2V 0.12W epoxy adhesive solar panel For airport solar bird repellent ZW-3535.
