Zhiwang New Energy has Yuyao Zhiwang New Energy and Xuzhou Zhiwang New Energy, which can provide different solar panel products according to customer needs. For example, epoxy resin solar panels, PET
7 Years
| Ask Lasest Price | |
| Brand Name : | ZHIWANG |
| Model Number : | ZW-6855 |
| Certification : | IS09001/14001/CE/TUV/UL,CE, EMC |
| Price : | Negotiable |
| Payment Terms : | L/C,D/A,D/P,T/T,Western Union,MoneyGram payments for offline orders. |
| Supply Ability : | 300sets/day |
| Delivery Time : | 5-8 WORKING DAYS |

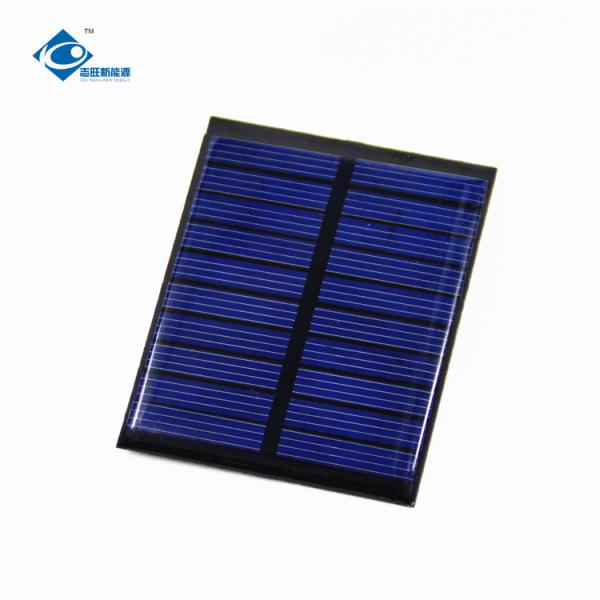

5V Strip PET Solar Photovoltaic Panel ZW-6855 Mini Portable Solar Panels 0.5W Epoxy Solar Panel
| Model: | ZW-6855-P | |
| Size: | 68mmx55mmx2.2mm | |
| Battery: | 10 | |
| Peak power: | 0.65W | |
| Max voltage: | 6V | |
| Max current: | 110mA | |
| Open voltage: | 6.6V | |
| Short current: | 150mA | |
| Weight: | 25g | |
| Raw Material: | Poly Mono Crystalline Silicon or Mono Crystalline Silicon Epoxy Adhesive or PET Printed Circuit Board (PCB) or Glass Fiber Material Base Plate | |
| Operating Temperature(°C) | -40°C ~ + 85°C | |
| Maximum System Voltage | 8V(UL)/10V(IEC) DC | |
| Maximum Rated Current Series | 1A | |
| Temperature Coefficients of Pmax | -0.435% | |
| Temperature Coefficients of Voc | -0.35% | |
| Temperature Coefficients of Isc | 0.043% | |
| Nominal Operating Cell Temperature | 47+/-2°C | |
| Standard Testing Conditions | AM1.5 E=1000W/m2 T=25℃ Luminous intensity: 38000Lux Test ambient temperature 25 ° C ±2 ° C Humidity of 60% 70%; The normal temperature | |
| Guaranteed | 1 year:90% of its nominal power rating | |
| Certificates | CE, RoHS, EMC | |
| Current temperature coefficient | %/K | 0.06+/-0.01 |
| Voltage temperature coefficient | mV/K | -(78+/-10) |
| Power temperature coefficient | %/K | -(0.5+/-0.05) |
Zhiwang New Energy's solar panel module with high efficiency solar
PV module adopts the worlds highest efficiency cell with efficiency
up to 21%, and efficiency of the module is 25%-30% higher than the
traditional ones.
This cell's positive pole and the negative pole are on the same
side, the cell's front side can absorb maximum sunlight, so that it
can get the maximum power.
Features
1. High cell efficiency with quality silicon materials for long term output stability;
2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures;
3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance;
4. Both Poly-crystalline and Mono-crystalline;
5. Excellent performance in harsh weather;
6. Outstanding electrical performance under high temperature and low irradiance;
7. It's widely used for decorative lamps, electric toys, electronics, gifts and other industries;
8. The size and shape can be customized;
9. Our products are widely used in solar lighting, lamps, household electricity, traffic, communication, meteorological, building and photo-voltaic power plants and other fields.
10. Quality solar cells with high solar energy conversion up to 19.5%.
11. Mono-crystalline or poly-crystalline silicon solar cells are for options.
12. Transparent low-iron tempered glass and anodized aluminum frame to ensure modules working in extreme outdoor environment.
13. Lifespan up to 25 years.
14. Rigorous quality control meeting the highest international standards;
15. ISO9001: 2008(Quality Management System)certified factories manufacturing world-class products;
16. Products meet international standards and through professional testing and certification authority (SGS, UL, CE, TUV).
17. Resin/Epoxy PCB solar panel,effectively increase waterproof,dust proof,wear resistance,elastic,heat resistance.
18. ETFE and PET PCB surface available for solar panel photo-voltaic.
19. Super light to carry easy anytime, anywhere.
20. High efficiency poly crystalline cells in solar panel photo voltaic.
Quality assurance test
Thermal cycling test (provided by the supplier of floor material
and surface material)
Thermal shock test (provided by the supplier of floor material and
surface material)
Heat/freeze and high humidity cycle test (provided by the supplier
of floor material and surface material)
Electrical isolation test (laboratory simulation data)
Hail impact test (laboratory simulation data)
Mechanical, wind and torsional load tests (laboratory simulation
data)
Salt spray test (provided by the supplier of floor materials and
surface materials)
Light and water exposure tests (laboratory simulation data)
Wet CO2 / SO2 (laboratory simulation data)
Q. Are you a manufacturer or a trading company?
A. We are two factories in Yuyao,Zhejiang and Xuzhou, Jiangsu, with OEM& ODM& Customization available.
Q. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our 5V Strip PET Solar Photovoltaic
Panel ZW-6855 Mini Portable Solar Panels 0.5W Epoxy Solar Panel
sample.
Q. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown
cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your
authorization letters.
Q. What is your terms of delivery?
A: EXW, FOB, CIF. And other accepted payment method.
Q. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your
advance payment. The specific delivery time depends on the items and the quantity of your 5V Strip PET Solar
Photovoltaic Panel ZW-6855 Mini Portable Solar Panels 0.5W Epoxy
Solar Panel order.
Q. Can you produce according to the samples?
A: Yes, we can produce by your 5V Strip PET Solar Photovoltaic
Panel ZW-6855 Mini Portable Solar Panels 0.5W Epoxy Solar Panel
samples or technical drawings. We can build the molds and fixtures.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery 5V Strip PET Solar
Photovoltaic Panel ZW-6855 Mini Portable Solar Panels 0.5W Epoxy
Solar Panel.
Q.How many years for warranty?
A: Our warranty is 1 -3 years for our 5V Strip PET Solar Photovoltaic Panel ZW-6855 Mini Portable Solar Panels 0.5W Epoxy Solar Panel.
|
