    2.5W Photovoltaic Portable Solar Panel ZW-2.5W-6VM Mini Glass Laminated Solar Panels Charger 6V

    Ask Lasest Price
    Brand Name : ZHIWANG
    Model Number : ZW-2.5W-6VM
    Certification : CE EMC ROHS
    Price : USD $3.5
    Supply Ability : 700 Set/Sets per Day 5000/WEEK
    • Product Details
    • Company Profile

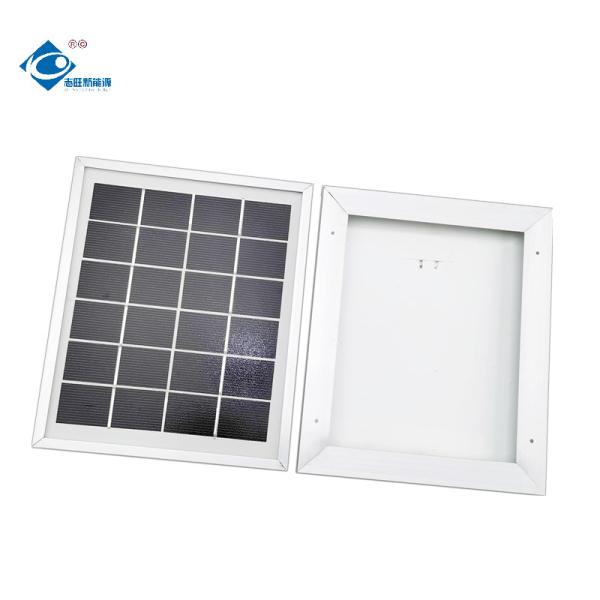

    2.5W Photovoltaic Portable Solar Panel ZW-2.5W-6VM Mini Glass Laminated Solar Panels Charger 6V




    2.5W 6V Photovoltaic Portable Solar Panel Charger ZW-2.5W-6VM Outdoor Glass Laminated Solar Panelem


    Model:ZW-2.5W-6VM
    Brand:Zhiwang
    Size:170mmx130mmx17mm
    Material:Glass and plastic frame; Poly-crystalline or Mono-crystalline Silicon
    Battery:12
    Size of Cell17mm*52mm
    Peak power:2.5W
    Max voltage:6V
    Max current:0.45A
    Open voltage:6.8V
    Short current:0.5A
    Weight:0.35KG
    Keyword:Glass Laminated Solar Panel
    Front Glass:3.2mm, High Transmission, Low iron, tempered Glass
    Color:Customize
    Raw Material:

    Glass and Plastic Frame

    Poly-crystalline or Mono-crystalline Silicon

    EVA-------excellent anti-aging EVA

    TPT-------TPT hot seal made of flame resistance

    Operating Temperature(°C)-40°C ~ + 85°C
    Maximum System Voltage10V(UL)/15V(IEC) DC
    Maximum Rated Current Series2A
    Temperature Coefficients of Pmax-0.435%
    Temperature Coefficients of Voc-0.35%
    Temperature Coefficients of Isc0.043%
    Nominal Operating Cell Temperature47+/-2°C
    Current temperature coefficient%/K0.06+/-0.01
    Voltage temperature coefficientmV/K-(78+/-10)
    Power temperature coefficient%/K(0.5+/-0.05)

    The high efficiency solar PV module adopts the world’s highest efficiency cell with efficiency up to 23%, and efficiency of the module is 25-30% higher than the traditional ones, this cell’s positive pole and the negative pole are on the same side, the cell’s front side can absorb maximum sunlight, so that it can get the maximum power.


    Features
    1. High cell efficiency with quality silicon materials for long term output stability;
    2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures;
    3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance;
    4. Both Poly-crystalline and Mono-crystalline;
    5. Excellent performance in harsh weather for 2.5W 6V Glass Laminated Solar Panel for mini solar panel charger ZW-2.5W-6V Residential Solar Power Panel for Emergency light;
    6. Outstanding electrical performance under high temperature and low irradiance;
    7. It's widely used for decorative lamps, electric toys, electronics, gifts and other industries;
    8. The size and shape can be customized for 2.5W 6V Glass Laminated Solar Panel for mini solar panel charger ZW-2.5W-6V Residential Solar Power Panel for Emergency light;
    9. Our products are widely used in solar lighting, lamps, household electricity, traffic, communication, meteorological, building and photovoltaic power plants and other fields.

    10. Quality solar cells with high solar energy conversion up to 19.5%.
    11. Mono-crystalline or poly-crystalline silicon solar cells are for options.
    12. Transparent low-irom tempered glass and anodized aluminum frame to ensure modules working in extreme outdoor environment.
    13. Lifespan up to 25 years.
    14. Rigorous quality control meeting the highest international standards;
    15. ISO9001: 2008(Quality Management System)certified factories manufacturing world-class products;
    16. Products meet international standards and through professional testing and certification authority (SGS, UL, CE, TUV).
    17. Resin/Epoxy PCB solar panel,effectively increase waterproof,dustproof,wear resistance,elastic,heat resistance.
    18. ETFE and PET PCB surface available for solar panel photovoltaic.
    19. Super light to carry easy anytime, anywhere.
    20. High efficiency polycrystalline cells in solar panel photovoltaic.


    Quality assurance testing
    Thermal cycling test
    Thermal shock test
    Thermal/Freezing and high humidity cycling test
    Electrical isolation test
    Hail impact test
    Mechanical, wind and twist loading test
    Salt mist test
    Light and water-exposure test
    Moist carbon dioxide/sulphur dioxide


    .png






    2.5W Photovoltaic Portable Solar Panel ZW-2.5W-6VM Mini Glass Laminated Solar Panels Charger 6V


    Q. Are you a manufacturer or a trading company?

    A. We are a factory in Yuyao, with OEM&ODM&Customization available.


    Q. Is it OK to print my logo on led light product?
    A: Yes. Please inform us formally before our production and confirm the design firstly based on our 2.5W 6V Photovoltaic Portable Solar Panel Charger ZW-2.5W-6V Outdoor Glass Laminated Solar Panel sample.


    Q. What is your terms of packing?
    A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

    Q. What is your terms of delivery?
    A: EXW, FOB, CIF.

    Q. How about your delivery time?
    A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your Zhiwang 2.5W 6V Photovoltaic Portable Solar Panel Charger ZW-2.5W-6V Outdoor Solar Panel System order.

    Q. Can you produce according to the samples?
    A: Yes, we can produce by your Zhiwang 2.5W 6V Photovoltaic Portable Solar Panel Charger ZW-2.5W-6V Outdoor Solar Panel System samples or technical drawings. We can build the molds and fixtures.

    Q. Do you test all your goods before delivery?
    A: Yes, we have 100% test before delivery Zhiwang 2.5W 6V Photovoltaic Portable Solar Panel Charger ZW-2.5W-6V Outdoor Solar Panel System.


    Q.How many years for warranty?

    A.Our warranty is 10 -15 years for our 2.5W 6V high efficiency solar panel for solar panel battery charger ZW-2.5W-6V used for portable solar power generator.


    Q: How do you make our business long-term and good relationship?
    A:1. We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.


    Zhiwang New Energy attaches great importance to the development of new products.

    In the past 15 years, the company has been developing itself.

    It is committed to building the strongest production base of solar energy components, keeping in mind the concept of customer first, not relying on trust, honesty and pragmatism, pioneering and innovative, unity and harmony, the pursuit of excellence.

    We sincerely welcome new and old customers at home and abroad to visit!
